项目背景
舜宇的rk3399的Android10 二合一 新板卡，需求是使用mipi输出信号，通过GM8775C 转成 lvds信号适配10.1寸屏幕，主要记录踩坑记录
第一次尝试调试mipi屏幕，首先需要梳理原理图的链路，确保原理图的线路和芯片输出端口，每个使用到的芯片，确认供电，使能，时钟，确认芯片配置的电阻NC正确。确认dts使用的节点对应原理图的输出端口，先确保有信号输出，整个链路有信号，然后调试
原理图分析

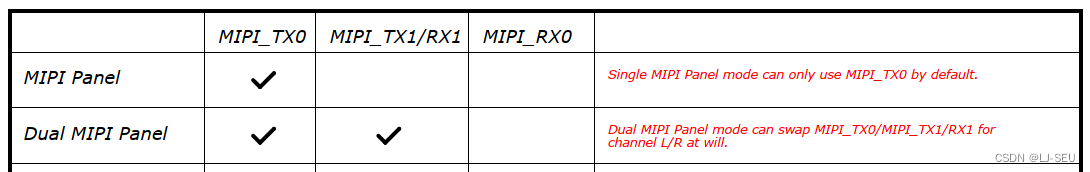

这个原理图是有错误的，rk3399的dsi有两个通道，dsi 和dsi1, 要输出mipi信号，点亮单个mipi屏幕，有两种方法。
1.单通道方式，只支持使用dsi输出mipi信号
2.双通道方式，同时使用dsi和dsi1通道，两个通道都要供电
所以这个原理图的设计有问题，只供电使用了dsi1，原理上无法输出mipi信号
所以只能让板卡供应商改板

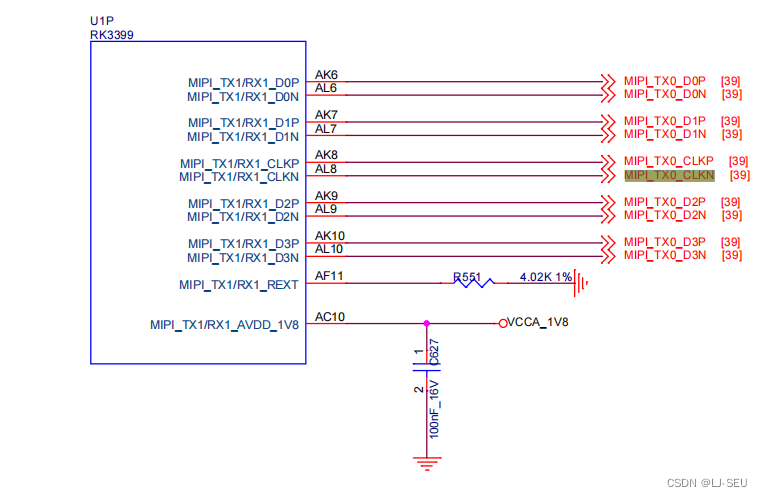

RK3399 dsi1的输出端口

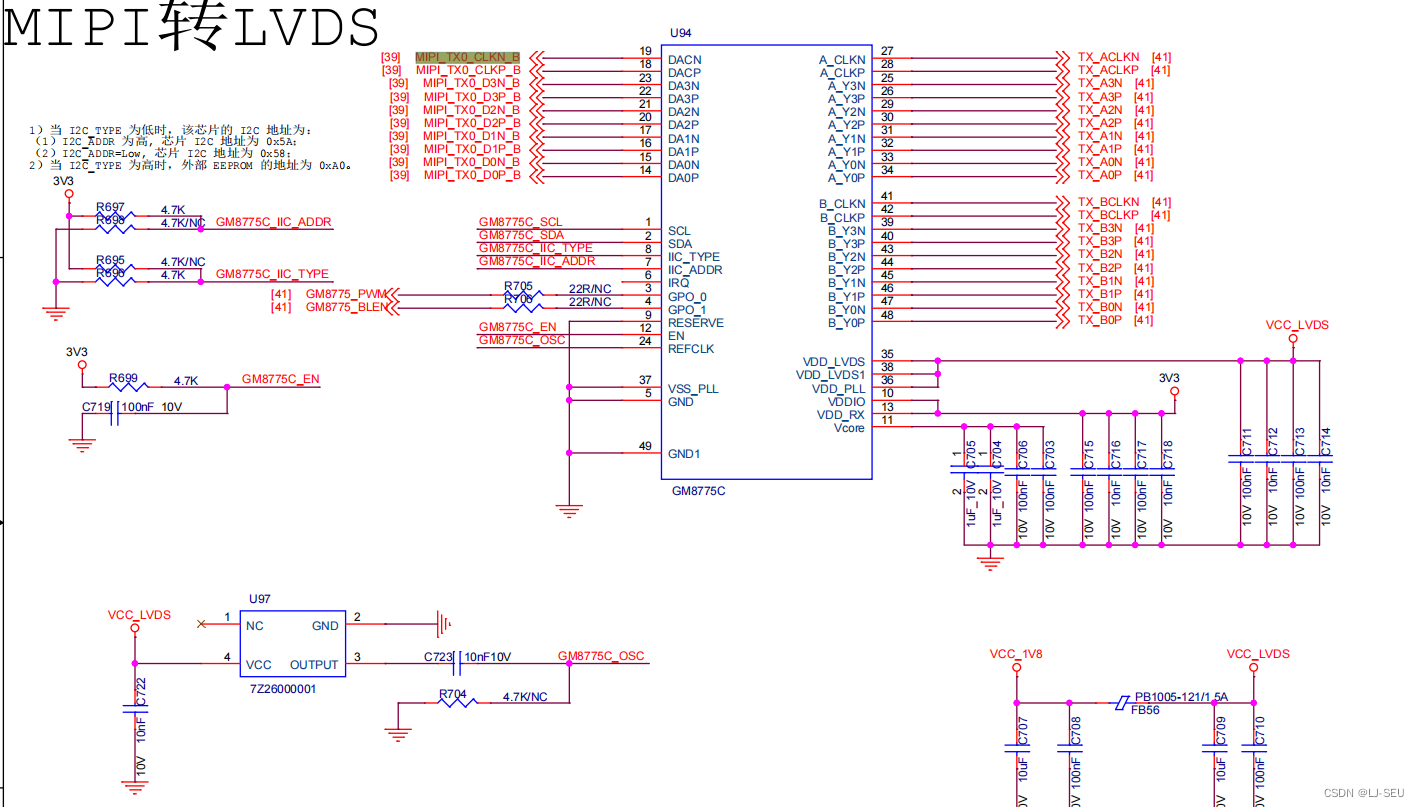

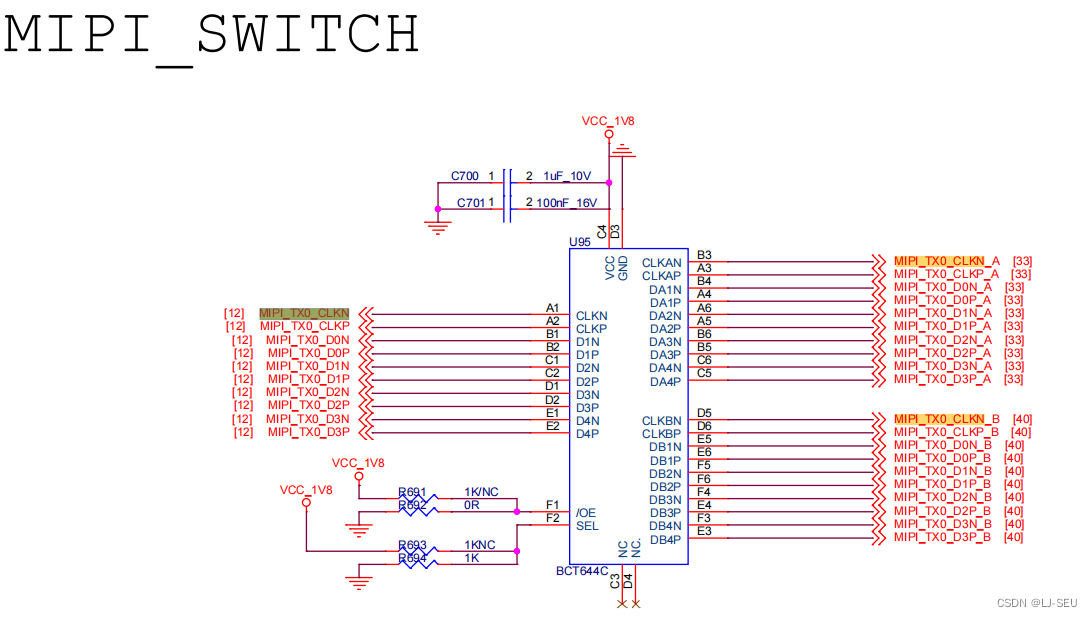

mipi信号的高速转换芯片，输出A通道直接mipi屏幕，B通道转接GM8775C转成lvds信号

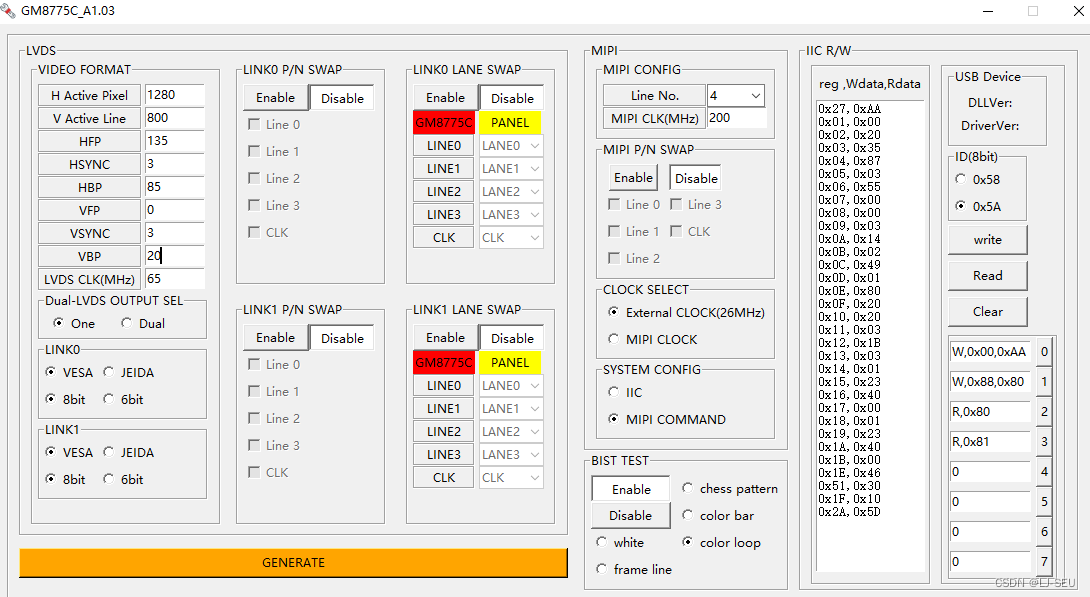

GM8775C。该芯片需要根据供应商提供的配置工具生成对应屏幕的mipi或i2c控制指令。
（mipi指令需要通过写在dts内，通过dsi的驱动，由mipi信号线路直接写入8775的configs寄存器中）
（i2c控制指令通过i2c直接写入。这个用于后端进入测试模式调试屏幕）

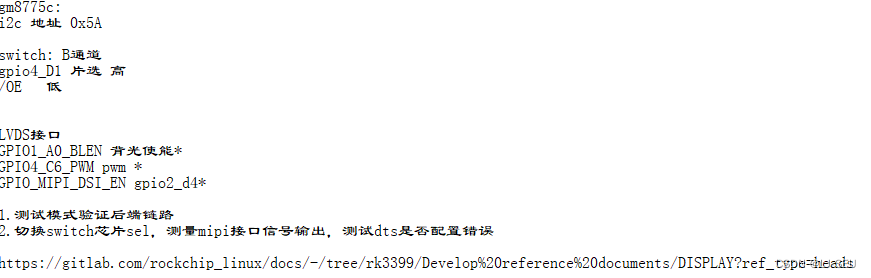

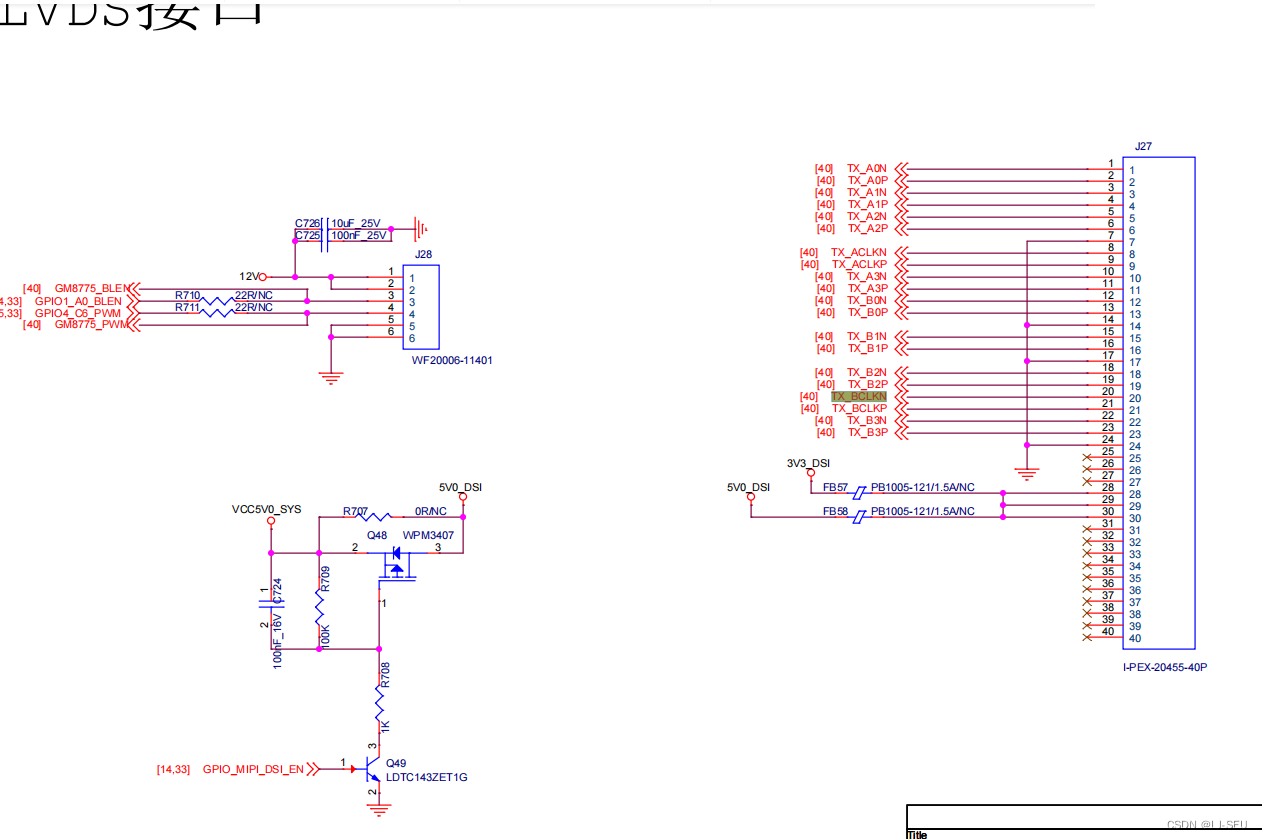

lvds接口，这里需要注意背光使能，pwm波输出的gpio引脚配置
数据信号链路分析
图像显示,以单通道为例
vopb -> dsi -> switch -> GM8775 -> lvds接口 -> 10.1寸lvds屏幕

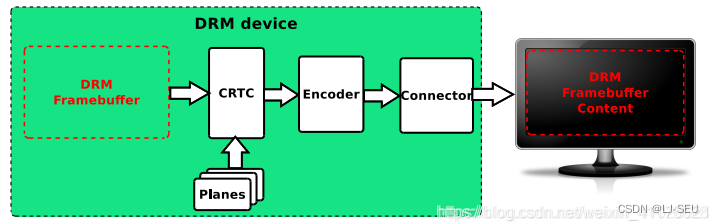

显示链路结构

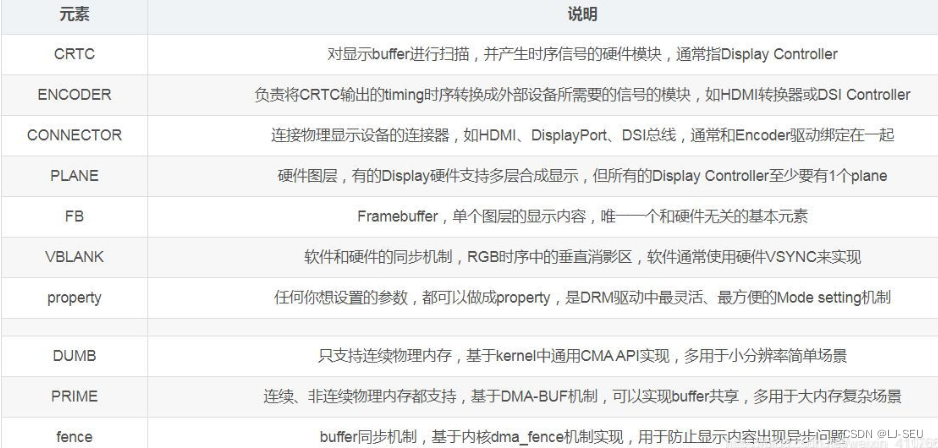

connector 后面一般接 bridge或者直接panel

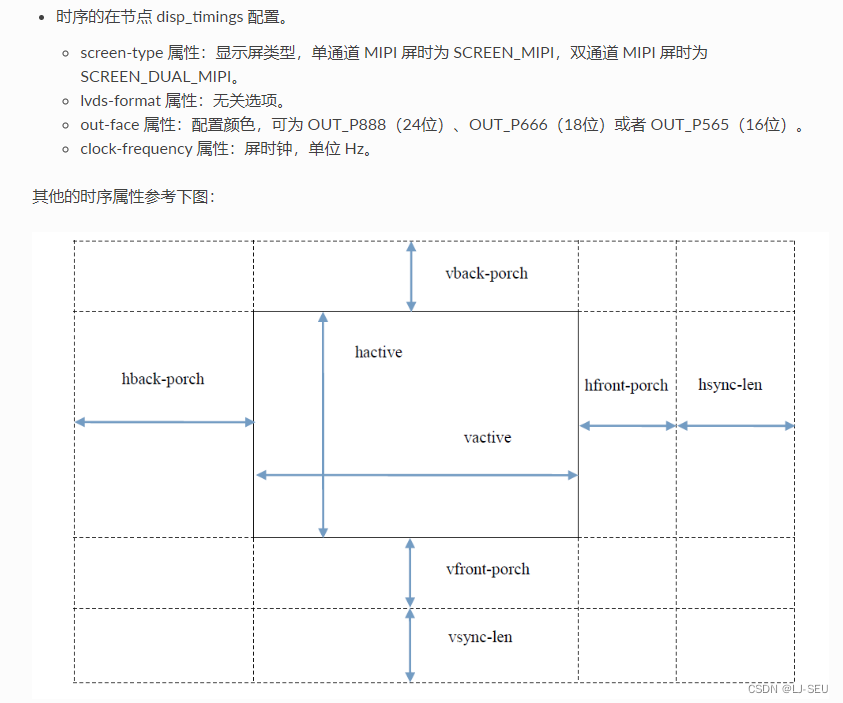

dts timing屏幕参数解析
调试记录
GM8775C 后端链路测试输出
一开始使用8775C配置工具生成的i2c指令，通过自己写的gm8775的驱动，用i2c将该指令写入到gm8775C的configs寄存器中。
当时没有注意到勾选的是测试模式，误打误撞驱动8775测试模式点亮了lvds屏幕，屏幕亮色彩条。
和供应商确认，如果8775的测试模式正常，那么后端的链路就正常了，因为8775的测试模式不需要mipi信号输入就能让lvds屏幕亮特定图案。
前端mipi信号测试
一开始先拿的光韬的写到一半的dts来用。
在GM8775C后端链路确认正常后，开始测试8775c的输入端。发现没有信号。
发现前面switch的片选电阻NC错了，导致信号走了A通道，没有走B通道。遂修改NC电阻，但还是没有信号。
和供应商沟通，说是8775C的时钟要选择使用MIPI时钟，不用参考时钟，而我们8775当时的参考时钟连接的是外部时钟芯片，所以又把参考时钟接地。还是没有信号。
之后怀疑是dts配置有问题。
dts有几个主要的节点，dsi, route_dsi(显示boot图片的)， dsi_in_vopb, vop_out_dsi. dsi_out_panel, panel_in_dsi，这几个节点定义了信号出来的链路，这个要确保正确。
检查了之后，发现还是没有信号，发现我们的原理图上RK3399的MIPI信号是选用的MIPI_TX1/RX1，而dts里面使用的dsi。以为是dsi通道选错了，然后改成dsi1。但是还是不行。
然后去查询驱动，驱动主要两块，kernel/driver/gpu/drm/rockchip/dw-mipi-dsi.c 和 kernel/driver/gpu/drm/panel/panel-simple.c
这两块主要是负责dsi节点和panel节点的驱动。
在加入日志调试后，发现mipi指令的发送在panel->prepare里面，这个在encoder->enable里面，但是这个没有被调用过。即使追到drm_atomic_helper.c甚至修改驱动，让其强行进入也不行。
以为是dts的问题。咨询RK，给了一个只使用dsi1点亮mipi屏的案例，以为和我们的一样，都是使用dsi1作为信号输出。但是还是没有信号。
后来经过RK，说是dsi接口使用的要求，说是我们的dsi的输出接口没有供电
如果使用单通道，即dts里面只使能一个dsi节点，必须使用dsi节点。
如果使用双通道，则必须两个通道都要供电。
所以我们的板卡的设计就有问题，只用一个通道就只能走dsi，想要用两个通道，然后dsi1接屏幕，dsi通道也需要供电。（因为MIPI_TX1/RX1和MIPI_TX0在芯片内部共用一个pll，所以要用dsi1就必须要把dsi0的电也给供上）。
结果是硬件改版
待续
改板后调试成功
2023_09_12号，新改版的rk3399二合一板已经到了，这次改版，将dsi0，dsi1都进行了供电，然后数据走dsi0。
项目资料
因为我们数据是直接从dsi0走出来的，所以不再需要之前redmine上提供的使用dsi1的patch包了。
- 确认数据链路 vopb->dsi0->switch->gm8775->lvds_panel
- 确认背光是否打开（发现原理图上背光的电阻没有开）
- 确认后端链路是否正常，switch芯片切换，示波器抓信号，发现有变化。说明switch芯片是好的
- gm8775c用gm8775c的i2c驱动直接写入参数，发现能通过gm8775c的测试模式直接驱动屏幕。后端链路正常
- 通过改换成mipi_dsi的驱动，将panel-init-sequence写入gm8775c来让gm8775测试模式驱动，也可以通过i2cdetect，i2cdump来读取挂载到i2c总线上的gm8775c的寄存器的值来确认是否成功写入。发现前端链读通路正常
- 直接disabled掉测试模式，代码结构不变，之后就一发点亮了。
- 屏幕调参，需要同步修改gm8775c的参数，直接使用gm8775c的测试模式来调参比较方便。
patch
From 9da946433967d11f1665f77a049372419385cfc9 Mon Sep 17 00:00:00 2001
From: liangji <liangji@keenon.com>
Date: Thu, 14 Sep 2023 10:50:45 +0800
Subject: [PATCH 1/2] feat: support mipi2lvds_10.1 use gm8775c
Change-Id: Ie3e7e6d18d3a6c744694279ed452c2ce1662c139
Signed-off-by: liangji <liangji@keenon.com>
---
arch/arm64/boot/dts/rockchip/Makefile | 1 +
.../boot/dts/rockchip/rk3399-keenon-common.dtsi | 4 +
arch/arm64/boot/dts/rockchip/rk3399-keenon-w3s.dts | 198 +++++
arch/arm64/configs/keenon_tablet_w3s_defconfig | 943 +++++++++++++++++++++
mk.sh | 8 +-
5 files changed, 1152 insertions(+), 2 deletions(-)
create mode 100644 arch/arm64/boot/dts/rockchip/rk3399-keenon-w3s.dts
create mode 100644 arch/arm64/configs/keenon_tablet_w3s_defconfig
diff --git a/arch/arm64/boot/dts/rockchip/Makefile b/arch/arm64/boot/dts/rockchip/Makefile
index e2d67d5..66f9abe 100644
--- a/arch/arm64/boot/dts/rockchip/Makefile
+++ b/arch/arm64/boot/dts/rockchip/Makefile
@@ -66,6 +66,7 @@ dtb-$(CONFIG_ARCH_ROCKCHIP) += rk3399-sapphire-excavator-linux.dtb
dtb-$(CONFIG_ARCH_ROCKCHIP) += rk3399-sapphire-excavator-lp4-linux.dtb
dtb-$(CONFIG_ARCH_ROCKCHIP) += rk3399-tve1030g-avb.dtb
dtb-$(CONFIG_ARCH_ROCKCHIP) += rk3399-keenon-w3.dtb
+dtb-$(CONFIG_ARCH_ROCKCHIP) += rk3399-keenon-w3s.dtb
dtb-$(CONFIG_ARCH_ROCKCHIP) += rk3399pro-evb-lp4-v11-linux.dtb
dtb-$(CONFIG_ARCH_ROCKCHIP) += rk3399pro-evb-v10-linux.dtb
dtb-$(CONFIG_ARCH_ROCKCHIP) += rk3399pro-evb-v11-linux.dtb
diff --git a/arch/arm64/boot/dts/rockchip/rk3399-keenon-common.dtsi b/arch/arm64/boot/dts/rockchip/rk3399-keenon-common.dtsi
index 95850d8..79f144e 100644
--- a/arch/arm64/boot/dts/rockchip/rk3399-keenon-common.dtsi
+++ b/arch/arm64/boot/dts/rockchip/rk3399-keenon-common.dtsi
@@ -794,6 +794,10 @@
bl_en: bl-en {
rockchip,pins = <1 RK_PA1 RK_FUNC_GPIO &pcfg_pull_none>;
};
+ bl_en1: bl-en1 {
+ rockchip,pins = <1 RK_PA0 RK_FUNC_GPIO &pcfg_pull_none>;
+ };
+
};
leds {
diff --git a/arch/arm64/boot/dts/rockchip/rk3399-keenon-w3s.dts b/arch/arm64/boot/dts/rockchip/rk3399-keenon-w3s.dts
new file mode 100644
index 0000000..5760fee
--- /dev/null
+++ b/arch/arm64/boot/dts/rockchip/rk3399-keenon-w3s.dts
@@ -0,0 +1,198 @@
+// SPDX-License-Identifier: (GPL-2.0+ OR MIT)
+/*
+ * Copyright (c) 2018 Fuzhou Rockchip Electronics Co., Ltd
+ */
+
+/dts-v1/;
+#include "rk3399-keenon-common.dtsi"
+
+&edp{
+ status = "disabled";
+};
+
+&pwm0{
+ status = "disabled";
+};
+
+&pwm1{
+ status = "okay";
+};
+
+&backlight {
+ enable-gpios = <&gpio1 0 GPIO_ACTIVE_HIGH>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&bl_en1>;
+ pwms = <&pwm1 0 1000000 0>;
+};
+
+&hdmi {
+ status = "disabled";
+};
+
+&sdio0 {
+ status = "disabled";
+};
+
+&dsi_in_vopb {
+ status = "okay";
+};
+
+&dsi_in_vopl {
+ status = "disabled";
+};
+
+&route_dsi {
+ connect = <&vopb_out_dsi>;
+ status = "okay";
+};
+
+&dsi {
+ status = "okay";
+ rockchip,lane-rate = <1000>;
+
+ dsi_panel: panel@0 {
+ status = "okay";
+ compatible = "simple-panel-dsi";
+ reg = <0>;
+ backlight = <&backlight>;
+ enable-gpios = <&gpio2 RK_PD4 GPIO_ACTIVE_HIGH>;
+ //reset-gpios = <&gpio3 RK_PA4 GPIO_ACTIVE_LOW>;
+ reset-delay-ms = <120>;
+ enable-delay-ms = <120>;
+ prepare-delay-ms = <120>;
+ unprepare-delay-ms = <120>;
+ disable-delay-ms = <120>;
+ dsi,flags = <(MIPI_DSI_MODE_VIDEO | MIPI_DSI_MODE_VIDEO_BURST |
+ MIPI_DSI_MODE_LPM | MIPI_DSI_MODE_EOT_PACKET)>;
+ dsi,format = <MIPI_DSI_FMT_RGB888>;
+ dsi,lanes = <4>;
+ panel-init-sequence = [
+ 23 00 02 27 AA
+ 23 00 02 01 00
+ 23 00 02 02 20
+ 23 00 02 03 35
+ 23 00 02 04 87
+ 23 00 02 05 03
+ 23 00 02 06 55
+ 23 00 02 07 00
+ 23 00 02 08 00
+ 23 00 02 09 03
+ 23 00 02 0A 14
+ 23 00 02 0B 02
+ 23 00 02 0C 49
+ 23 00 02 0D 01
+ 23 00 02 0E 80
+ 23 00 02 0F 20
+ 23 00 02 10 20
+ 23 00 02 11 03
+ 23 00 02 12 1B
+ 23 00 02 13 03
+ 23 00 02 14 01
+ 23 00 02 15 23
+ 23 00 02 16 40
+ 23 00 02 17 00
+ 23 00 02 18 01
+ 23 00 02 19 23
+ 23 00 02 1A 40
+ 23 00 02 1B 00
+ 23 00 02 1E 46
+ 23 00 02 51 30
+ 23 00 02 1F 10
+ 23 00 02 2A 01
+ ];
+
+ panel-exit-sequence = [
+ 05 00 01 28
+ 05 00 01 10
+ ];
+
+ disp_timings: display-timings {
+ native-mode = <&timing_lvds101>;
+ //native-mode = <&timing_lvds101>;
+ // 7" 1024x600 LVDS panel
+ timing_lvds7: timing0 {
+ clock-frequency = <52000000>;
+ hactive = <1024>;
+ vactive = <600>;
+ hfront-porch = <160>;
+ hsync-len = <10>;
+ hback-porch = <150>;
+ vfront-porch = <12>;
+ vsync-len = <1>;
+ vback-porch = <22>;
+ hsync-active = <0>;
+ vsync-active = <0>;
+ de-active = <0>;
+ pixelclk-active = <1>;
+ };
+ // 10.1" 1280x800 LVDS panel
+ timing_lvds101: timing1 {
+ clock-frequency = <65000000>;
+ hactive = <1280>;
+ vactive = <800>;
+ hback-porch = <85>;
+ hfront-porch = <135>;
+ vback-porch = <20>;
+ vfront-porch = <0>;
+ hsync-len = <3>;
+ vsync-len = <3>;
+ hsync-active = <0>;
+ vsync-active = <0>;
+ de-active = <0>;
+ pixelclk-active = <1>;
+ };
+
+ // test mipi
+ timing_test: timing2 {
+ clock-frequency = <132000000>;
+ hactive = <1080>;
+ vactive = <1920>;
+ hback-porch = <30>;
+ hfront-porch = <15>;
+ vback-porch = <15>;
+ vfront-porch = <15>;
+ hsync-len = <2>;
+ vsync-len = <2>;
+ hsync-active = <0>;
+ vsync-active = <0>;
+ de-active = <0>;
+ pixelclk-active = <1>;
+ };
+ };
+
+ ports {
+
+
+
+ port@0 {
+ reg = <0>;
+ panel_in_dsi: endpoint {
+ remote-endpoint = <&dsi_out_panel>;
+ };
+ };
+ };
+ };
+
+ ports {
+
+
+
+ port@1 {
+ reg = <1>;
+ dsi_out_panel: endpoint {
+ remote-endpoint = <&panel_in_dsi>;
+ };
+ };
+ };
+};
+
+&i2c3 { //这是I2C的dts配置，我GM8775C是挂载到I2C1上的。
+ status = "okay";
+ clock-frequency = <400000>;
+
+ gm8775c@2d {
+ compatible = "gm8775";
+ reg = <0x2d>;
+ status = "okay";
+ };
+};
